35kv class 800 ~ 31500kva three-phase double-winding on-load voltage regulating
oil-immersed power transformer
Product description
Hengfengyou oil-immersed power transformer is the latest product designed and developed on the
basis of absorbing the most advanced technology at home and abroad. It has high reliability, low
partial discharge, low noise, low loss and high anti-short circuit ability. Its excellent and reliable
performance has won customers as well as the reorganization of experts and appreciation
Rate
Power
(KVA) | VoltageCombination(kV) | Connection
Symbol | Losses(kW) | No-load
current
(%) | Impedance
voltage

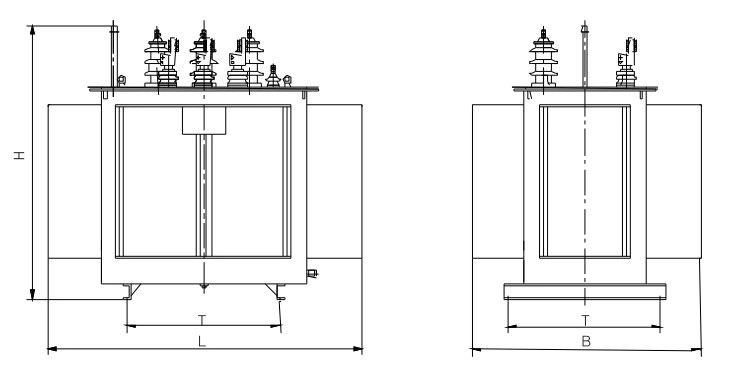

(%) | Weight(kg) | Dimension(mm) | Gauge
(mm) |
HV
(KV) | Tapping
rangeof
H.V.(%) | LV
(kV) | |No-load
loss | Load
loss | Core | Oil | Total | L | W | H |
| 30 | 30
33
35 | +5%
+2*2.5% | 0.4 | Yd11 | 0.11 | 0.83/0.79 | 2.2 | 6.5 | 195 | 260 | 665 | 1140 | 775 | 1725 | 550 |
| 50 | 0.17 | 1.21/1.15 | 2 | 275 | |305 | 805 | 1170 | 935 | 1740 | 550 |
| 100 | 0.23 | 2.01/1.9 | 21.7 | 405 | 380 | 1150 | 1230 | 940 | 1820 | 550 |
| 125 | 0.27 | 2.38/2.26 | 1.8 | 525 | 410 | 1285 | 1335 | 960 | 1890 | 550 |
| 160 | 0.29 | 2.82/2.69 | 1.6 | 610 | |440 | 1335 | 1360 | 980 | 1910 | 660 |
| 200 | 0.34 | 3.33/3.16 | 1.5 | 720 | 465 | 1490 | 1385 | 1020 | 1945 | 660 |
| 250 | 0.41 | 3.95/3.7 | 61.4 | 815 | 490 | 1635 | 1410 | 1050 | 2010 | 660 |
| 315 | 0.49 | 4.76/4.5 | 31.4 | 930 | 520 | |1765 | 1440 | 1100 | 2060 | 660 |
| 400 | 0.58 | 5.75/5.47 | 1.3 | 1205 | 610 | 2050 | 1560 | 1130 | 2120 | 820 |
| 500 | 0.69 | 6.92/6.5 | 81.2 | 1340 | 680 | |2200 | 1690 | 1150 | 2200 | 820 |
| 630 | 0.83 | 7.87 | 1.1 | 1575 | 725 | 2565 | 1800 | 1180 | 2235 | 820 |
| 800 | 0.98 | 9.41 | 1 | 1895 | 890 | 2950 | 1940 | 1200 | 2250 | 820 |
| 1000 | 1.15 | 11.54 | 1 | 2145 | 1005 | 3650 | 2080 | 1230 | 2315 | 820 |
| 1250 | 1.41 | 13.97 | 0.9 | 2455 | 1160 | 3810 | 2140 | 1270 | 2360 | 820 |
| 1600 | 1.7 | 16.67 | 0.8 | 2730 | 1250 | 4520 | 2360 | 1310 | 2400 | 820 |
| 2000 | 2.01 | 19.71 | 0.8 | 3040 | 1310 | 5200 | 2400 | 1350 | 2515 | 820 |
| 2500 | 2.37 | 23.3 | 0.7 | 3450 | 1690 | 6300 | 2490 | 1480 | 2690 | 820 |
| 3150 | 2.82 | 27.71 | 0.6 | 4100 | 2050 | 8350 | 2555 | 1560 | 2730 | 820 |
| 4000 | 3.37 | 33.15 | 0.6 | 5050 | 2670 | 9550 | 2675 | 1600 | 2810 | 1070 |
Special Features:
1.
Low partial discharge: the apparent discharge quantity is usually less than 100pC;
2.
Low noise: Product of 63MVA or below 63MVA has a noise level less than 60dB;
3.
Low loss: no-load loss is reduced by 20 percent compared with that specified in national standards;
4.
High anti-short capability: the SFZ10-40000/110 transformer has passed the short-circuit test carried out by China National Transformer Quality Supervision Testing Center.
Winding:
The interleaved and continuous winding structure is adopted for HV windings, thus to improve
the electric distribution and effectively improve the anti-lightning impulse capability. Inner and
outer support strip structure is adopted. The support strips and pads are all rounded to improve
insulation reliability. Oil-directing structure is adopted in the winding, thus to reduce the hotspot
temperature and prolong insulation life.
Both the H.V and M.V. windings are usually provided with separate voltage regulating windings,
so the ampere-turn of all the windings are completely balanced. These can effectively eliminate
the axial electrodynamics force during external short circuit and improve the dynamic stability
under external short circuit.
