Preinstalled Compact Substation ZGS13-630/12 For Industrial Zone / Commercial Center

Qingdao Hengfengyou Electrical Engineering Co., Ltd.
Contact Now

Preinstalled Compact Substation ZGS13-630/12 For Industrial Zone / Commercial Center

Brand Name : HENGFENGYOU

Model Number : ZGS

Certification : ISO IEC CB COC KEMA SNI SABS CCC

Place of Origin : China

MOQ : 1

Price : 2000-200000/piece

Payment Terms : LC T/T

Supply Ability : 5000 pieces/year

Delivery Time : 30 days

Packaging Details : wooden case

Three Phase : S

Color : Green

Material : Copper or Aluminum

Phase : Three

Coil Number : two

Rated capacity : 315-2400kw

Standard : IEC60076

Frequency : 50/60Hz

Output Voltage : 240/220/200/120/115/110/100V

Coil Structure : Toroidal

Rated voltage : 11kV-33kV

Cooling : AN or AF

Contact Now

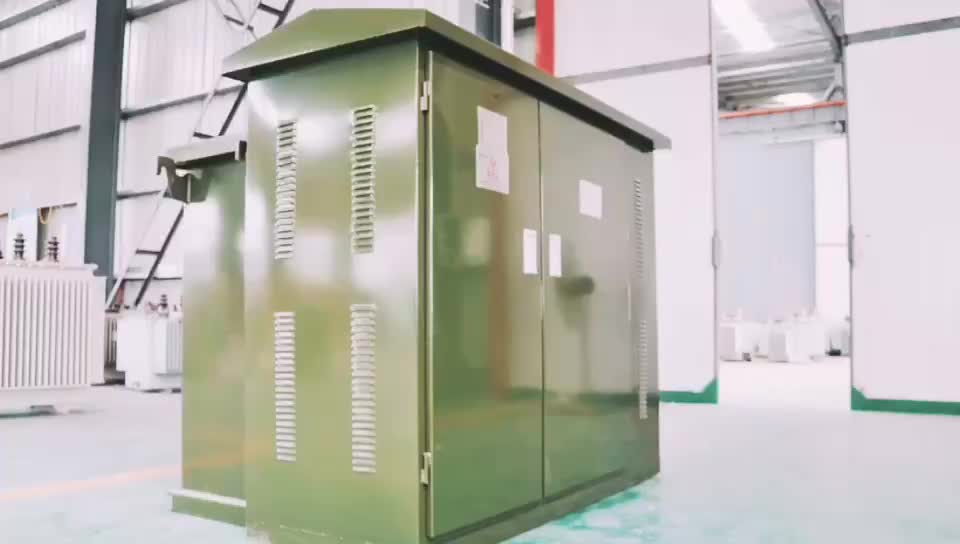

ZGS13-630/12 Preinstalled Substation (American) Compact Substation

Product View

ZGS series combined transformers also called American transformers and are series of products as required
by the construction development and transformation of rural and urban grid.It is a kind of transformer combined
by auxiliary equipment including the body of transformer,switchgear, fuse, disassembling switches, low-voltage
power distribution unit, which can meetthe requirement of configurations such as electric power measurement,
reactive compensation and low-voltage shunt. The ZGS combined transformer, in AC 50HZ, 6-10KV network,
whose nominal capacity is 63-1600KVA, is an independent set of transformation and distribution device, which
can be both applied to outdoor and indoor, generally used in industrial zone,urban residential district, commercial
center, high-rise buildings and temporary construction
Preinstalled Compact Substation ZGS13-630/12 For Industrial Zone / Commercial Center
Technical parameters
Rated voltage 10/0.4kv(HV/LV)
Maximum working voltage 12(HV)
Rated frequency 50Hz
Rated capacity 50-1600kVA
Withstand voltage(1 min working) 35kV
Lightning impulse voltage 75kV
Cooling method oil immersion self-cooling
High voltage 50kA
backup fuse switching on current
on-off current of the plug fuse 2.5
environment temperature -35℃ to 40℃
Coil temperature 62 ℃
No load voltage ±5% ±2x2.5%
Noise level 50db
Protection level IP43

Preinstalled Compact Substation ZGS13-630/12 For Industrial Zone / Commercial Center


Manager Jack Whatsapp :+8618563957953

Manager Datang Whatsapp: +8613589262999

Preinstalled Compact Substation ZGS13-630/12 For Industrial Zone / Commercial Center
